Customizable IoT Equipment PCB Assembly: Expert Manufacturing for Smart home system Devices

1.Product Features of IoT PCB Assembly

• High-Frequency Signal Integrity
• Supports advanced wireless protocols (5G, Wi-Fi 6E, Bluetooth 5.3) with precise impedance control and low dielectric loss materials like Rogers RO4003C.
• Ultra-Low Power Consumption
• Optimized for battery-driven devices (e.g., 8μA standby current) with power management ICs (PMICs) and sleep-mode circuit design.
• Miniaturization & High Density
• Integrates 01005/0201 passive components, system-in-package (SiP) technology, and HDI (High-Density Interconnect) for compact layouts.
• Flexible & Rigid-Flex Design
• Combines rigid FR-4 and flexible polyimide layers for curved devices (e.g., smartwatches).
• Thermal Management
• Copper cladding and heat spreaders reduce hotspot temperatures by 15-30% in high-power modules.
• Environmental Resilience
• Uses 3D coating and RoHS-compliant materials for salt fog, UV, and extreme temperature resistance.

2.Advantages of IoT PCB Assembly

• Rapid Time-to-MarketThree-month iteration cycles via flexible manufacturing lines (e.g., 10-minute changeover for small batches).
• Cost-Effective ScalabilityEliminates high-volume penalties with modular production (e.g., 100-100,000 units at similar costs).
• Signal ReliabilityHybrid stack-up and controlled impedance ensure <5% signal loss in 5G/mmWave applications.
• Green ManufacturingENIG/OSP finishes and halogen-free materials meet EU environmental standards.
• Multi-Domain CompatibilitySupports simultaneous operation of sensors, RF modules, and microcontrollers with EMI shielding.

3.Technical Challenges in IoT PCB Assembly

• Precision Soldering
• 01005 components require SPI (3D solder paste inspection) + AOI + X-ray for <5% voiding in BGA joints.
• High-Frequency Layout
• Millimeter-wave routing demands <10μm linewidths and hybrid laminates (e.g., Megtron 6 + Rogers).
• Thermal Expansion Control
• CTE mismatch between copper (17ppm/°C) and FR-4 (13ppm/°C) risks delamination in multi-layer boards.
• EMC Compliance
• Requires ground planes and differential pairs to mitigate interference between Wi-Fi and sensor signals.
• Material Selection
• Balancing dielectric constant (Dk) and cost: Rogers RO4003C (Dk=3.38) vs. standard FR-4 (Dk=4.4).

4.Application Areas of IoT PCBA

5.Technical Parameters of IoT PCBA

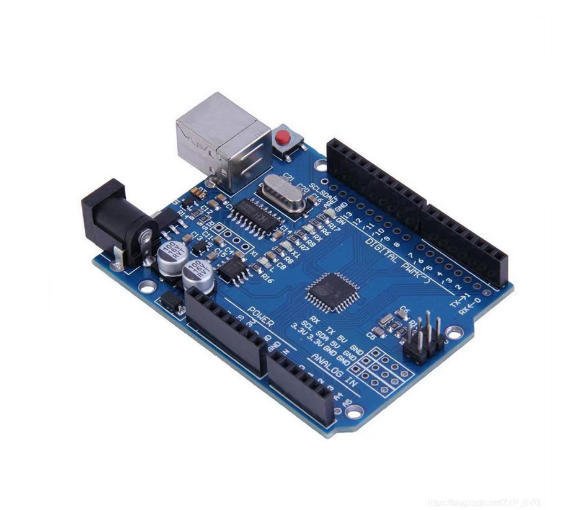

6. Product in details

At Ring PCB,as a professional manufacturer and customizer of PCB and PCBA for over 17 years,we operate 5,000+㎡ modern self-owned factories in Shenzhen and Zhuhai, China, with a 500-strong team. All our PCB and PCBA products adhere to international industry standards. Need a prototype? We deliver in 3 days. Mass production? Ready in 7 days. Our solutions have reached over 50 countries and regions, backed by full-turnkey PCBA services tailored to your needs. Let’s collaborate—visit us at https://www.turnkeypcb-assembly.com/ to start your project.

In the past 17 years, Ring PCB has served more than 20,000 domestic and overseas customers to customize various types of PCB boards and PCB assembly services.

Why Choose Ring PCB?

Core Competencies & Advantages of Ring PCB Technolog

1. Direct Factory Pricing & Transparent Manufacturing

◦ Owned Shenzhen factory ensures source-level cost control and eliminates middleman markups.

◦ Invitation for factory visits to witness advanced equipment (e.g., automated SMT lines) and rigorous production processes firsthand.

2. One-Stop PCB & PCBA Expertise for End-to-End Solutions

◦ Comprehensive services from 2-48 layer PCB fabrication to components sourcing, SMT assembly, and full turnkey projects, eliminating the need for multiple vendors.

◦ 17+ years of industry experience (since 2008) with 500+ skilled employees, delivering 5,000+ electronic projects for 3,000+ global clients.

3. Stringent Quality Control with Advanced Inspections

◦ Multi-stage quality assurance: SPI 3D, AOI, LCR testing, and X-Ray for BGA components ensure zero-defect products.

◦ Certified compliance: IPC standards, RoHS, UL, ISO 9001/14001/13485, IATF16949—meeting medical, automotive, and industrial safety requirements.

4. Industry-Leading Capabilities & Customization

Specialized in high-frequency, heavy copper, and complex PCBs for demanding sectors: communication base stations, medical devices, EV charging stations, robotics, etc.

Tailored solutions for unique projects—from prototype to mass production, with rapid turnaround supported by in-house Shenzhen factory.

5. Reliable Partner for Diverse Applications

Wide industry coverage: Security, industrial control, drones, servers, and more—proven track record in critical sectors requiring high reliability.

Incoming material inspection, real-time process monitoring, and final QC guarantee on-time delivery with consistent performance.

Ring PCB not only offers professional PCB manufacturing, but also offer PCBA service, including component sourcing and SMT service with Samsung functional machine.

Convenience: One-stop service reduces supply chain complexity.
Quality: Certifications and multi-inspections ensure product reliability.
Speed: In-house production enables fast prototyping and delivery.
Cost-Effectiveness: Direct factory pricing with no compromise on quality.
Expertise: 17+ years supporting global clients across diverse industries.

Partner with Ring PCB Technology—where 17 years of expertise, end-to-end services, and certified quality meet your unique needs. Whether for prototyping or mass production, our Shenzhen factory ensures precision, speed, and factory-direct pricing. Contact us today to discuss your requirements !

Please note:

All products in our store are processing customized services, please be sure to contact our professional customer service before placing an order to confirm the product details.

Ring PCB Technology Co.,Limited is a professional PCB manufacturer with 17 years of history in China. Our products are updated and upgraded every year and we specialize in all kinds of PCB making and PCBA customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, please contact us on line or E-mail to us info@ringpcb.com, and we will provide you with one-on-one service from our professional sales team.

Thank you for your time.

Ring PCB, your PCB & PCBA Turnkey Solutions | Professional Circuit Manufacturing Expert

Ring PCB Technology Co.,Limited was established PCB assembly facility in Shenzhen, China in 2008.

We offer comprehensive one-stop services for PCB and PCBA service, ensuring convenience and reliability at every stage. Our services include:

• PCB Fabrication: Manufacturing high-quality circuit boards ranging from 1 to 48 layers.
• Electronic Components Sourcing: Reliable procurement from trusted suppliers.
• SMT and PCB Assembly Services: Expert assembly solutions tailored to meet diverse project needs.
• Full Turn-Key Service which covers PCB manufacturing,electronic Components Procurement,PCB Assembly and Box-Building

  This comprehensive service covers:

  With these integrated capabilities, Ring PCB also provides customers with a complete, reliable, and high-quality full turn-key solution, streamlining every step from production to final products.
